Types of DBMS: Relational, NoSQL, and Beyond

Introduction

Not all databases are designed in the same way, and choosing the right one plays a crucial role in system performance and scalability.Database Management Systems (DBMS) can be categorized into different types based on how they store, organize, and retrieve data. Each type follows a distinct data model and is optimized for specific use cases.

This section explores the major types of DBMS, including traditional relational systems and modern NoSQL databases, highlighting their characteristics and practical applications in real-world systems.

Explanation

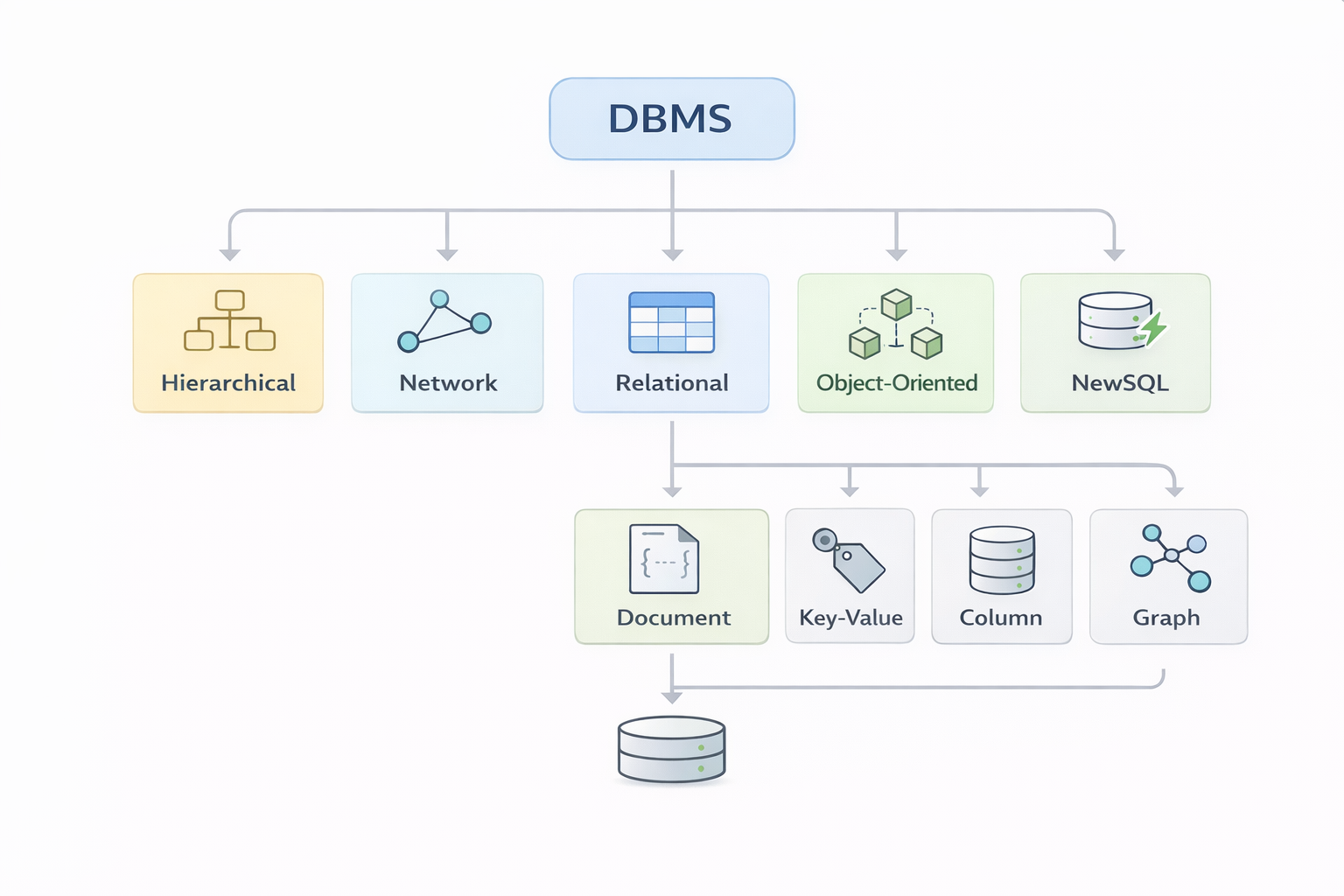

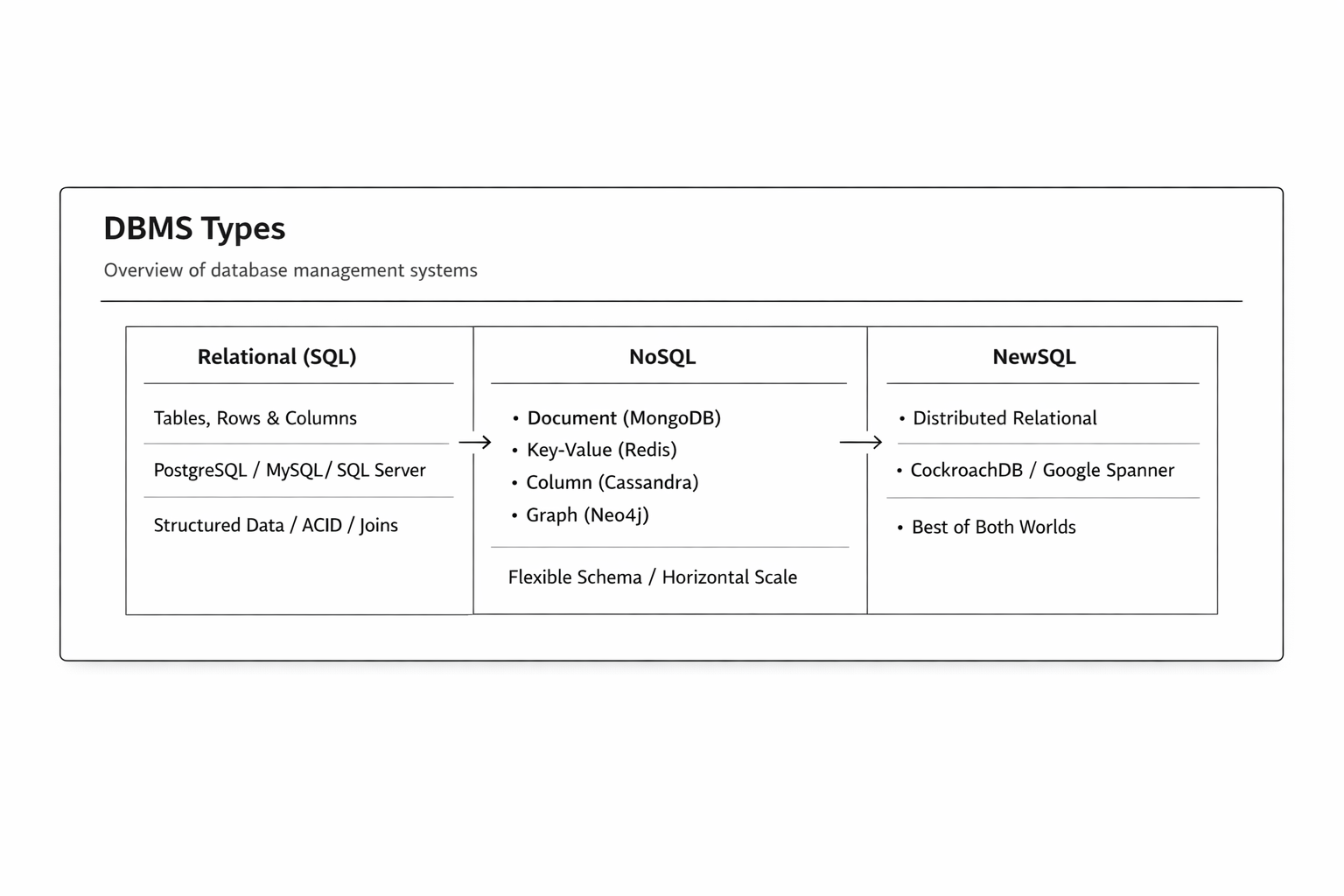

The primary types of DBMS are classified by their underlying data model — the way they organize and represent data. The four historical models are hierarchical, network, relational, and object-oriented. In modern software, relational and NoSQL databases dominate, with NewSQL emerging as a hybrid approach.

Relational DBMS (RDBMS)

RDBMS organizes data into tables (relations) of rows and columns. Tables are linked by foreign keys. SQL is the standard query language. RDBMS enforces ACID properties —

• Atomicity – All operations in a transaction happen completely or not at all.

• Consistency – Data remains correct and valid before and after a transaction.

• Isolation – Transactions execute independently without affecting each other.

• Durability – Once saved, data is permanent even after failures.

making it ideal for transactional systems. Examples: MySQL, PostgreSQL, Oracle Database, Microsoft SQL Server.

NoSQL DBMS

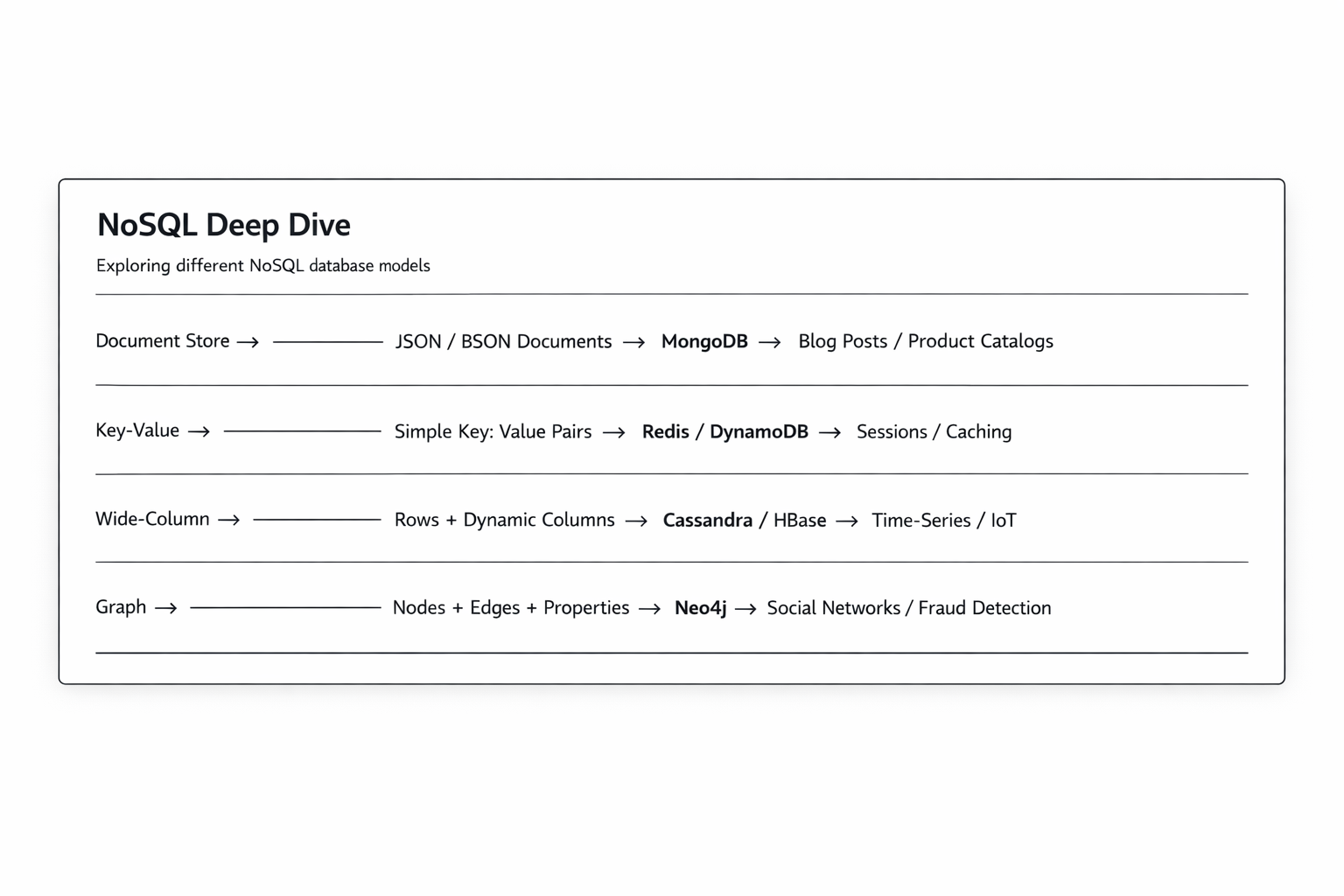

NoSQL databases sacrifice strict ACID compliance for horizontal scalability and flexible schemas. Four major NoSQL categories exist:

• Document stores: Store JSON-like documents. Ideal for content management and catalogs. Example: MongoDB.

• Key-value stores: Ultra-fast lookups by key. Ideal for caching and sessions. Example: Redis.

• Column-family stores: Store data in column families rather than rows. Ideal for time-series and analytics. Example: Apache Cassandra.

• Graph databases: Store nodes and edges representing relationships. Ideal for social networks and recommendation engines. Example: Neo4j.

Real World Example

Netflix uses multiple DBMS types simultaneously. User account information and billing data live in a relational DBMS because financial transactions require ACID guarantees. The video streaming catalog and recommendation metadata use Cassandra — a column-family NoSQL store — because it scales horizontally across millions of records with low-latency reads. Session data uses Redis for sub-millisecond access. This polyglot persistence approach is standard in large-scale modern architectures.

Technical Breakdown

Example

-- RDBMS: structured query with joins
SELECT o.order_id, u.name, o.total_amount
FROM orders o
INNER JOIN users u ON o.user_id = u.user_id
WHERE o.status = 'pending';

-- In a NoSQL document store (MongoDB style — not SQL):
-- db.orders.find({ status: "pending" })

Common Mistakes

• Assuming NoSQL is always faster than RDBMS — for complex queries with joins, RDBMS is often faster due to query optimization.

• Using NoSQL when ACID guarantees are required — payment systems, bank transfers, and inventory management should use RDBMS.

• Treating all NoSQL databases as interchangeable — a key-value store is fundamentally different from a graph database.

Interview Tips

A common interview question is "When would you choose NoSQL over RDBMS?" — answer with specific scenarios: NoSQL for unstructured data, massive horizontal scale, flexible schemas, and high-velocity reads/writes. Choose RDBMS when you need complex joins, transactions, strong consistency, and a well-defined schema. Mentioning CAP theorem (Consistency, Availability, Partition Tolerance) demonstrates advanced understanding.
