Advanced Rate Limiting and Throttling

rate limiting algorithms, token bucket, sliding window, fixed window, per-user rate limiting, Redis rate limiting, rate limit headers, throttling

Advanced Rate Limiting and Throttling

Simple IP-based rate limiting is the starting point, but production APIs need more sophisticated strategies. This lesson covers rate limiting algorithms, per-user limits, Redis-backed distributed rate limiting, and communicating limits to clients through headers.

DiagramRate Limiting Algorithms Explained

IMAGE PROMPT (replace this block with your generated image):

Flat three-panel algorithm comparison diagram on white background. Title: Rate Limiting Algorithms. Three panels arranged horizontally, each showing a visual representation of how requests are handled over time. Panel 1: Fixed Window. A horizontal timeline bar divided into two equal fixed blocks (e.g., 0-60s and 60-120s). Dots (requests) distributed within each block. Red burst at window boundary showing burst spike. Caption: Simple but allows burst at window edges. Panel 2: Sliding Window. Same timeline but with a sliding rectangle moving across the bar smoothly. Dots distributed more evenly. No burst spike. Caption: Even distribution, no boundary spikes. Panel 3: Token Bucket. A bucket icon with tokens (circles) being added at a steady rate (drip arrow from top) and consumed per request (arrow from side). Bucket has a max tokens label. Caption: Allows short bursts within token limit. Each panel has a title badge in #3A5EFF. Below all three panels: a recommendation note — Use Token Bucket or Sliding Window for production APIs. White background, clean visual style.

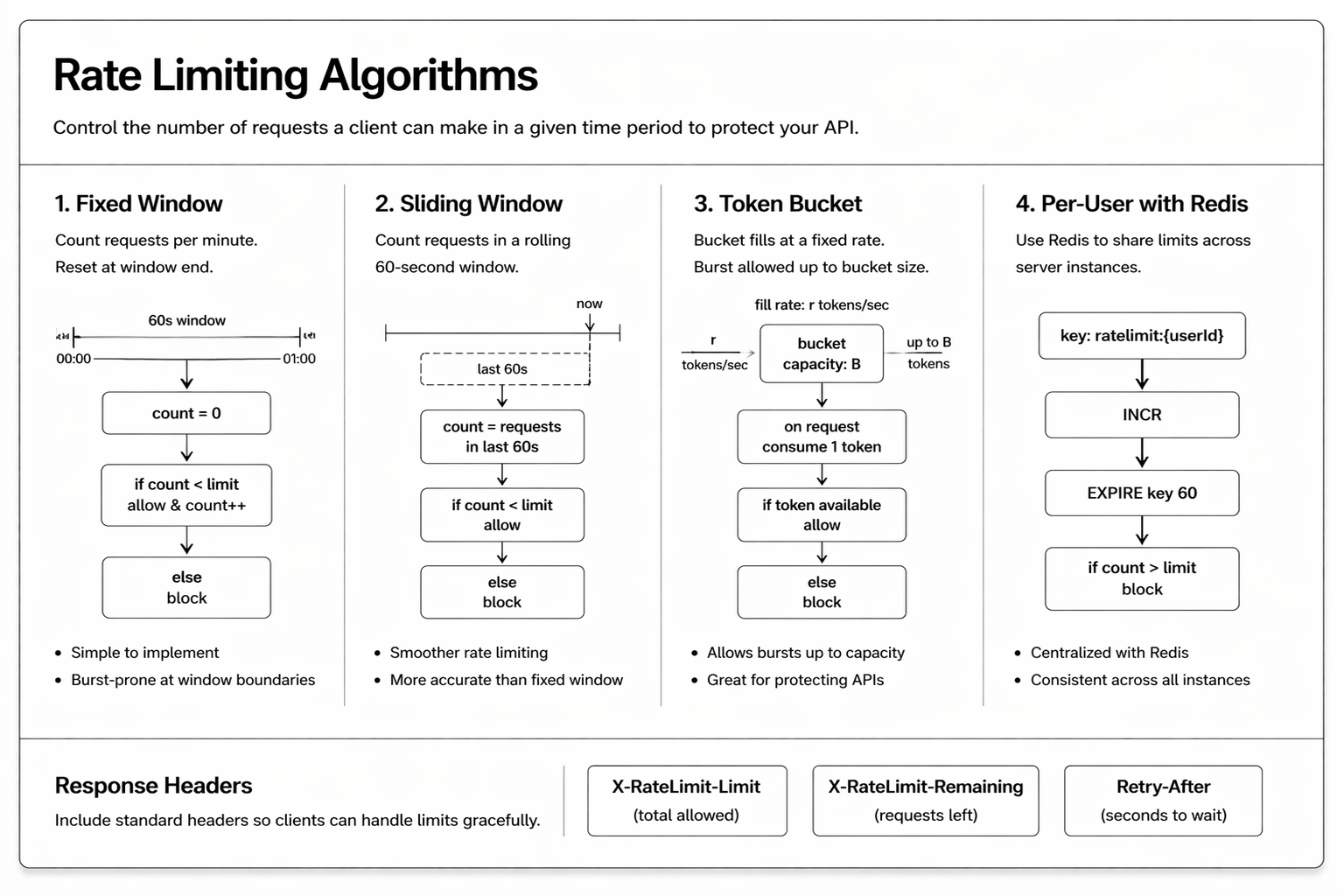

Rate Limiting Algorithms

The Fixed Window algorithm counts requests in fixed time windows (e.g., 100 requests per hour). It is simple but allows burst traffic at window boundaries. The Sliding Window algorithm counts requests in a rolling window, providing more uniform protection against bursts. The Token Bucket algorithm gives each client a bucket of tokens that refills at a constant rate — each request consumes a token. It naturally allows short bursts while enforcing a long-term average rate.

Per-User Rate Limiting with Redis

npm install ioredis rate-limit-redis

const userRateLimiter = rateLimit({
  windowMs: 60 * 1000,
  max: 60,
  keyGenerator: (req) => req.user ? req.user.id : req.ip,
  store: new RedisStore({ sendCommand: (...args) => redisClient.call(...args) })
});

Using Redis ensures rate limit state is shared across all API server instances. Without Redis, each server instance maintains its own counter, allowing a client to make N requests to each server instance.

Rate Limit Headers

Communicate limits to clients via response headers: X-RateLimit-Limit: 100, X-RateLimit-Remaining: 47, X-RateLimit-Reset: 1705320000. When the limit is exceeded, return 429 and add Retry-After: 37 so clients know when to retry.
