Fixed Window

Divide time into fixed intervals such as each minute. Count requests per interval and reset at the boundary. Simple and memory-efficient:

const key = `ratelimit:${userId}:${Math.floor(Date.now() / 60000)}`;
const count = await redis.incr(key);
await redis.expire(key, 60);
if (count > 100) return res.status(429).json({ error: 'Rate limit exceeded' });

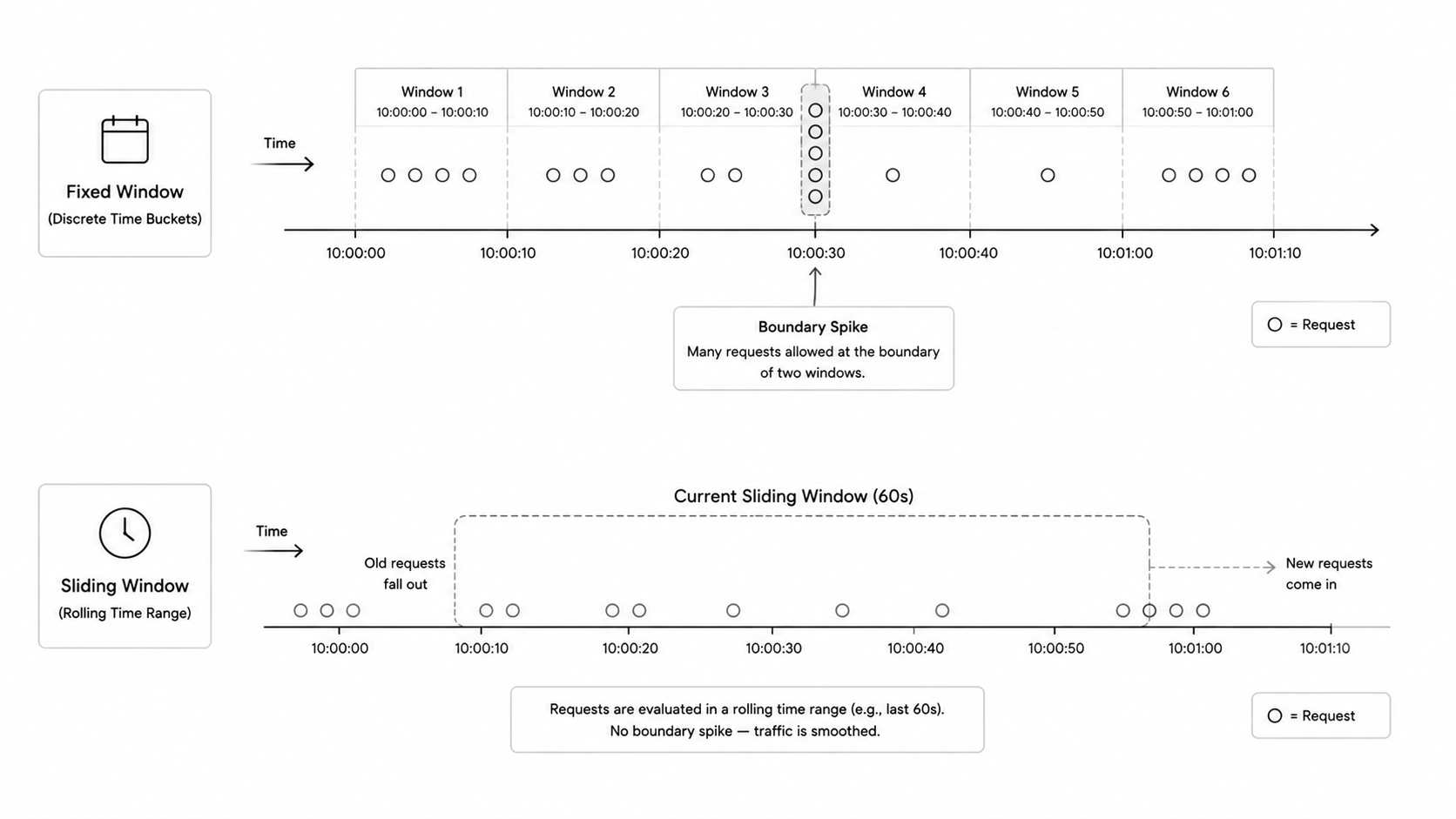

Problem: a client sends 100 requests at 00:59 and 100 more at 01:01 — 200 requests in 2 seconds across two windows, both under the limit. This boundary spike can overwhelm your backend.

Sliding Window Log

Store a timestamp for each request in a sorted set. Remove timestamps older than the window, then check count. Accurate but memory-intensive:

const now = Date.now();
const windowStart = now - 60000;
await redis.zremrangebyscore(key, 0, windowStart);
const count = await redis.zcard(key);
if (count >= 100) return res.status(429).end();
await redis.zadd(key, now, now);
await redis.expire(key, 60);

Sliding Window Counter

Hybrid approach: use two fixed-window counters (current and previous minute) weighted by how far into the current window you are. Approximates sliding window at fixed-window memory cost. Used by Cloudflare at scale. For most applications, fixed window is sufficient — only move to sliding window if boundary spikes are measurable in your production metrics.
